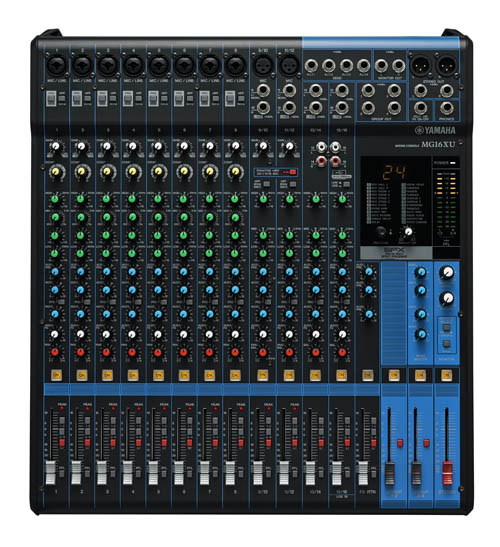

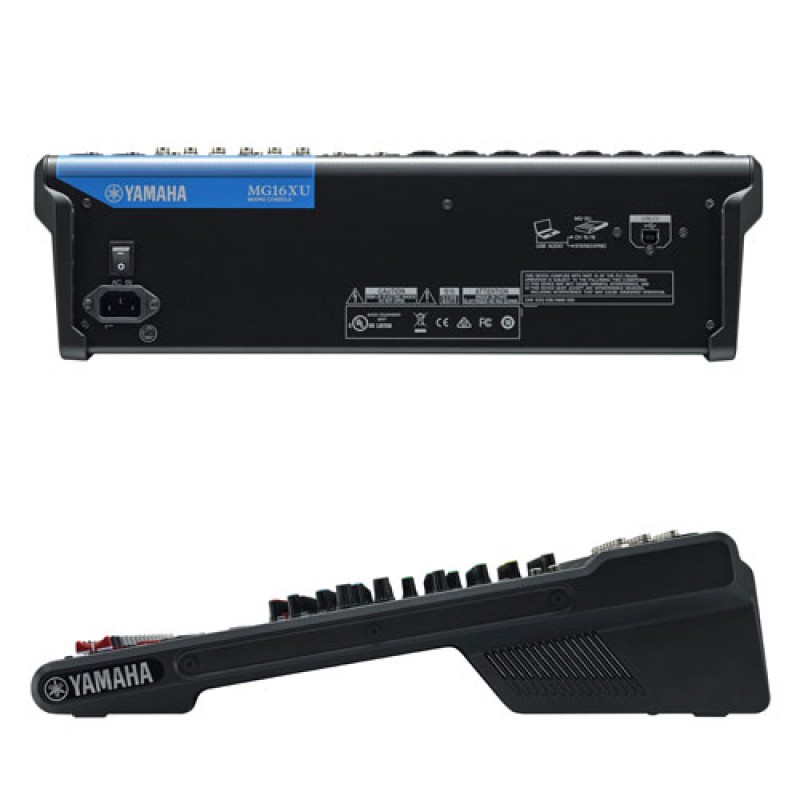

YAMAHA MG16XU混音機
YAMAHA MG16XU混音機
YAMAHA MG16XU混音機
YAMAHA MG16XU混音機

YAMAHA MG16XU混音機

產品簡述
Road Tough. Studio Ready.
百年來，Yamaha的所有產品，從首屈一指的世界級樂器到巡演級的專業音響，都已經成為極致工藝與創新的傳奇典範。 現在最新推出的MG Series，不只擁有完美的設計並且採用與高端專業混音座的相同的技術，包括錄音室等級的前級放大器、強大的數位處理器以及堅固耐用的結構。

MG Series混音座介面清楚好操作，用戶可依實際應用選擇所需的款式，從6通道到20通道應有盡有。這系列的混音座具有堅固的結構以及彈性化的設計，讓您可以從容的應付各種聲音需求，不論是錄音或是現場音樂環境都能呈現出無與倫比的完美音質與可靠性。
YAMAHA MG16XU混音機
YAMAHA MG16XU混音機

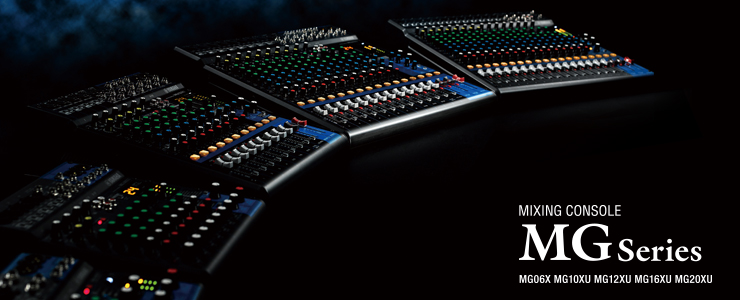

MG新系列(XU 機型)

16-頻道混音台 最多10支麥克風 / 16線性輸入 (8單音 + 4立體聲) 4群組 + 1立體聲群組 4 AUX (包括FX)

  • 16-頻道混音台
  • 最多10支麥克風 / 16線性輸入 (8單音 + 4立體聲)
  • 4群組 + 1立體聲群組
  • 4 AUX (包括FX)
  • 採用Darlington反相迴路的“D-PRE” 麥克風前級放大器
  • 1-旋鈕壓縮器
  • 高級效果：有24個程式的SPX
  • 24-bit/192kHz 2in/2out USB音訊功能
  • 透過Apple iPad Camera Connection Kit中的Lightning to USB Camera Adapter連接到iPad(2代以上)
  • 包括Cubase AI DAW軟體可下載版本
  • 單音輸入PAD開關
  • +48V 幻象電源
  • XLR平衡式輸出
  • 內部萬用型電源供應器世界通用
  • 含機架固定組
  • 金屬外殼
  • 尺寸(W×H×D): 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
  • 淨重: 6.8 kg (15.0 lbs.)A

MG20XU混音機

MG16XU混音機

MG12XU混音機

MG12XUK

MG10XU混音機

MG10XUF

MG06X混音機
混音功能 內建處理器 SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) SPX algorithm: 6 programs
輸出入介面 仿真電源 +48 V +48 V +48 V +48 V +48 V +48 V +48 V
數位輸出入介面 USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit -
Input Channels Mono[MIC/LINE] 12 8 4 6 4 4 2
Mono/Stereo[MIC/LINE] 4 2 2 - - - -
Stereo[LINE] - 2 2 3 3 3 2
Output Channels STEREO OUT 2 2 2 2 2 2 2
MONITOR輸出 1 1 1 1 1 1 -
PHONES 1 1 1 1 1 1 1
AUX SEND 4 4 2 1 1 1 -
GROUP OUT 4 4 2 - - - -
Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) Stereo: 1, AUX[FX]: 1 Stereo: 1, AUX[FX]: 1 Stereo: 1, AUX[FX]: 1 Stereo: 1
Input Channel Function 襯底音 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono) 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) 80 Hz, 12 dB/oct (Mono) 80 Hz, 12 dB/oct (Mono) 80 Hz, 12 dB/oct (Mono) 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec -
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking -
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
全諧波失真 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
頻率響應 +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
哼音 & 雜訊階級 平衡式輸入噪聲 -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
殘差輸出雜訊 -102 dBu (STEREO OUT, STEREO master fader: Min) -102 dBu (STEREO OUT, STEREO master fader: Min) -102 dBu (STEREO OUT, STEREO master fader: Min) -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) -102 dBu (STEREO OUT, STEREO master fader: Min) -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
二重像 (交互聲) -78 dB -78 dB -78 dB -83 dB -83 dB -83 dB -88 dB
電源需求 AC 100 – 240 V, 50 / 60 Hz AC 100 – 240 V, 50 / 60 Hz AC 100 – 240 V, 50 / 60 Hz PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
耗電量 36 W 30 W 22 W 22.9 W 22.9 W 22.9 W 12 W
尺寸 寬 444 mm (17.5") 444 mm (17.5") 308 mm (12.1") 315 mm (12.4") 244 mm (9.6") 275 mm (10.8") 149 mm (5.9")
高 130 mm (5.1") 130 mm (5.1") 118 mm (4.6") 91 mm (3.6") 71 mm (2.8") 110 mm (4.3") 62 mm (2.4")
深 500mm (19.7") 500 mm (19.7") 422 mm (16.6") 297mm (11.7") 294 mm (11.6") 390 mm (15.4") 202 mm (7.9")
淨重 7.1kg (15.7 lbs.) 6.8 kg (15.0 lbs.) 4.2 kg (9.3 lbs.) 3.0kg(6.62 lbs) 2.1 kg (4.63 lbs.) 3.3 kg (7.3 lbs) 0.9 kg (1.98 lbs.)
配件 Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
其他 Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C Operating Temperature: 0 to +40˚C
